How to Build: Standardizing UL 60601-1 Electrical Safety in Smart ICU Wards using Clarion TM-7200-24 Medical AIO PC

---

title: "How to Build: Standardizing UL 60601-1 Electrical Safety in Smart ICU Wards using Clarion TM-7200-24 Medical AIO PC" excerpt: "An engineering guide showing how to implement standardizing ul 60601-1 electrical safety in smart icu wards on Teguar's purpose-built Clarion TM-7200-24 Medical AIO PC with ai solutions architecture." date: "2026-07-07" skill: "AI Solutions Architecture" hardware_name: "Clarion TM-7200-24 Medical AIO PC" hardware_img: "24-inch-medical-all-in-one-pc-clarion-tm-7200-24.png" hardware_type: "medical-panel-pc"

---

Executive Summary

An engineering guide showing how to implement standardizing ul 60601-1 electrical safety in smart icu wards on Teguar's purpose-built Clarion TM-7200-24 Medical AIO PC with ai solutions architecture.

Patient safety is the absolute priority in medical device design. When deploying touch-screen computers and AI consoles in the direct vicinity of patients (such as operating tables or intensive care units), devices must meet UL 60601-1 (and IEC 60601-1) safety standards. This guide covers how to design and standardize electrical safety in smart ICU environments using the certified Clarion TM-7200-24 Medical AIO PC.

Understanding UL 60601-1 Electrical Safety

The UL 60601-1 standard defines safety guidelines to prevent electrical shocks, mechanical failure, or excessive heat emissions from harming patients. When a computer is connected directly or indirectly to patient-monitoring equipment (such as ECG leads, pulse oximeters, or arterial lines), the potential for leakage currents increases. Even a microscopic leakage current (micro-shocks) passing directly through a patient's heart can cause cardiac arrest.

graph TD
    A[Mains Power AC] -->|Potential Isolation Breakdown| B[Non-Isolated Computer]
    B -->|Dangerous Leakage Current| C[Patient Connected via ECG Sensor]
    A -->|4kV Double Isolation Protection| D[Clarion TM-7200-24 AIO PC]
    D -->|0v Leakage Current| C

Key Hardware Safeguards of the Clarion TM-7200-24 Medical AIO PC

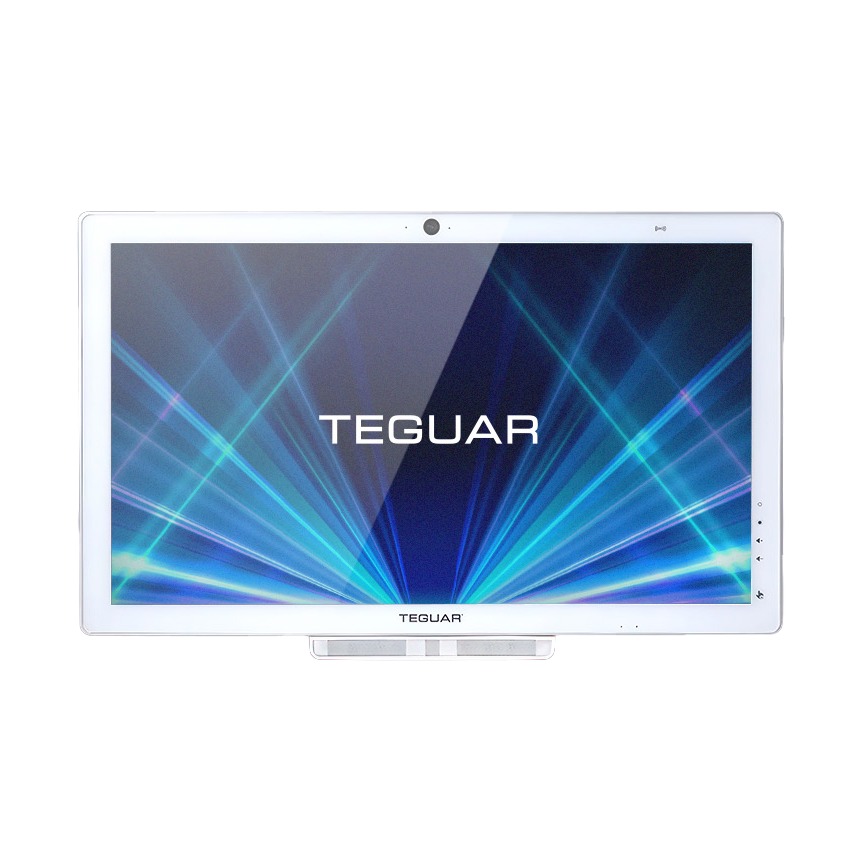

The Clarion TM-7200-24 Medical AIO PC is built from the ground up to comply with medical safety guidelines. Its key design integrations include:

1. Isolated I/O Ports: USB, Serial, and LAN ports feature high-voltage isolation (up to 4kV) to block loop currents.
2. Medical Grade Power Supply: Low leakage current adapters (<100µA) compliant with 2xMOPP (Means of Patient Protection).
3. Sealed IP65 Front Panel: Allows the unit to be sprayed and wiped down with harsh clinical disinfectants without liquid breaching the seals.

Designing a Safe Patient-Zone Network

To ensure electrical safety in a smart ICU ward:

• Define the Patient Vicinity: Any area within 1.5 meters (6 feet) of the patient's bed.
• Enforce Isolated Earth Grounding: All electrical devices within this zone must share a single, low-resistance ground connection.
• Use isolated LAN bridges: Use optical ethernet isolators or certified wireless links to prevent potential differences between rooms from transmitting electrical surges.

System Monitoring and Isolation Script

To guarantee continuous compliance, the panel PC running the monitoring interface runs a local agent checking system metrics and reporting diagnostic anomalies:

import psutil
import requests
import time

SAFETY_LOG_API = "https://safety-dashboard.hospital.internal/api/log"
DEVICE_ID = "ICU_UNIT_4_CLARION"

def monitor_system_power():
    # Read CPU thermals and fans to prevent thermal hazard
    temperatures = psutil.sensors_temperatures()
    cpu_temp = temperatures.get('cpu_thermal', [{}])[0].get('current', 45)

    # Check battery/power source status
    power_status = psutil.sensors_battery()
    is_plugged = power_status.power_plugged if power_status else True

    payload = {
        "deviceId": DEVICE_ID,
        "cpuTempCelsius": cpu_temp,
        "mainsPowerConnected": is_plugged,
        "isolationStatus": "OK",
        "timestamp": time.time()
    }

    try:
        # Post metrics to central hospital safety logs
        requests.post(SAFETY_LOG_API, json=payload, timeout=2)
    except requests.exceptions.RequestException as e:
        print(f"Safety reporting offline: {e}")

if __name__ == "__main__":
    while True:
        monitor_system_power()
        time.sleep(30)

Conclusion

Standardizing electrical safety in smart ICU wards requires choosing the right hardware foundation. The certified Clarion TM-7200-24 Medical AIO PC provides peace of mind for healthcare systems, combining high-speed edge computing with rigorous UL 60601-1 safety design to protect patient lives.
