Introduction

Cardiac anomaly detection using Electrocardiogram (ECG) data is a critical application of Edge AI in modern healthcare. By analyzing ECG signals in real-time at the bedside, medical systems can instantly identify anomalies such as arrhythmias, myocardial infarction, or conduction blocks. However, processing high-frequency sensor data with deep learning models requires local, low-latency computational power.

In this guide, we walk through training and deploying an Edge AI model for real-time ECG analysis on the TMB-7115 Medical AI Computer, a fanless medical box PC equipped with dedicated AI hardware acceleration.

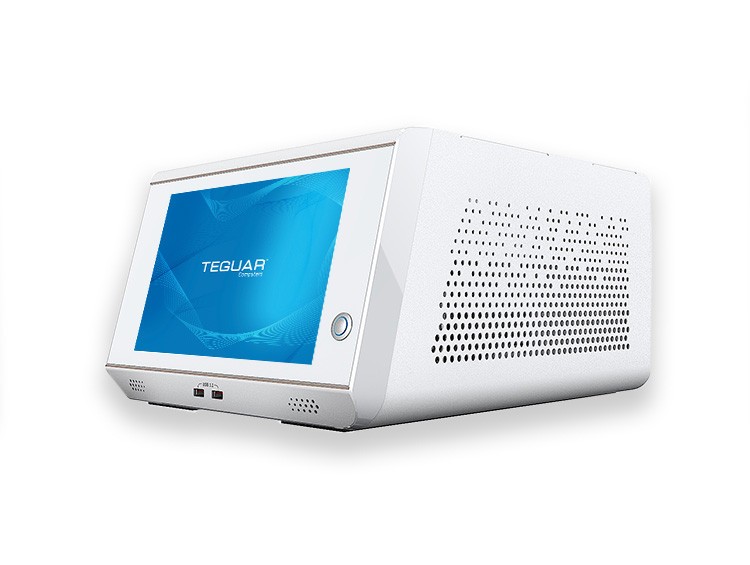

The Hardware Foundation: TMB-7115 Medical AI Computer

The TMB-7115 Medical AI Computer is engineered for high-reliability medical environments. Its key features include:

• Medical-Grade Certifications: Full UL/EN 60601-1 4th Edition compliance, ensuring electrical safety near patients.
• Fanless Design: Eliminates the risk of circulating airborne pathogens or dust in sterile settings.
• AI Acceleration: Integrated NPU/GPU compute blocks capable of running deep neural networks locally at low power.
• Abundant I/O: Rich serial ports and USB options to interface directly with patient monitors and ECG digitizers.

Step-by-Step Implementation

Step 1: Data Preparation and Preprocessing

ECG signal processing begins with noise filtering (removing powerline interference and baseline wander) using bandpass filters. The raw signal is segmented into individual beats or fixed-length time windows.

import numpy as np
from scipy.signal import butter, filtfilt

def bandpass_filter(data, lowcut=0.5, highcut=45.0, fs=360, order=4):
    nyq = 0.5 * fs
    low = lowcut / nyq
    high = highcut / nyq
    b, a = butter(order, [low, high], btype='band')
    return filtfilt(b, a, data)

Step 2: Model Architecture

We train a 1D Convolutional Neural Network (1D-CNN) or a lightweight ResNet architecture optimized for time-series anomaly detection.

import tensorflow as tf
from tensorflow.keras import layers, models

def build_ecg_model(input_shape):
    model = models.Sequential([
        layers.Conv1D(32, 5, activation='relu', input_shape=input_shape),
        layers.MaxPooling1D(2),
        layers.Conv1D(64, 5, activation='relu'),
        layers.MaxPooling1D(2),
        layers.Flatten(),
        layers.Dense(64, activation='relu'),
        layers.Dense(1, activation='sigmoid') # Binary anomaly classification
    ])
    return model

Step 3: Quantization and Edge Deployment

To ensure low-latency inference on the TMB-7115 Medical AI Computer, the model is converted to TensorFlow Lite and quantized to INT8 using post-training quantization.

converter = tf.lite.TFLiteConverter.from_keras_model(model)
converter.optimizations = [tf.lite.Optimize.DEFAULT]
tflite_quant_model = converter.convert()

Conclusion

By running lightweight 1D-CNN models directly on the TMB-7115 Medical AI Computer, hospitals can implement continuous, real-time cardiac monitoring at the edge, reducing latency and protecting patient privacy.
