Introduction

Medical workstations on wheels and mobile clinical carts are constantly in motion, crossing door thresholds, elevator tracks, and uneven hospital corridors. This constant shock and vibration can damage internal components, loosen storage drives, or cause cable disconnections. For carts running edge AI servers, designing shock-tolerant mounts is crucial.

This guide outlines how to design mounts for the TM-7240-22 Medical Grade AIO PC.

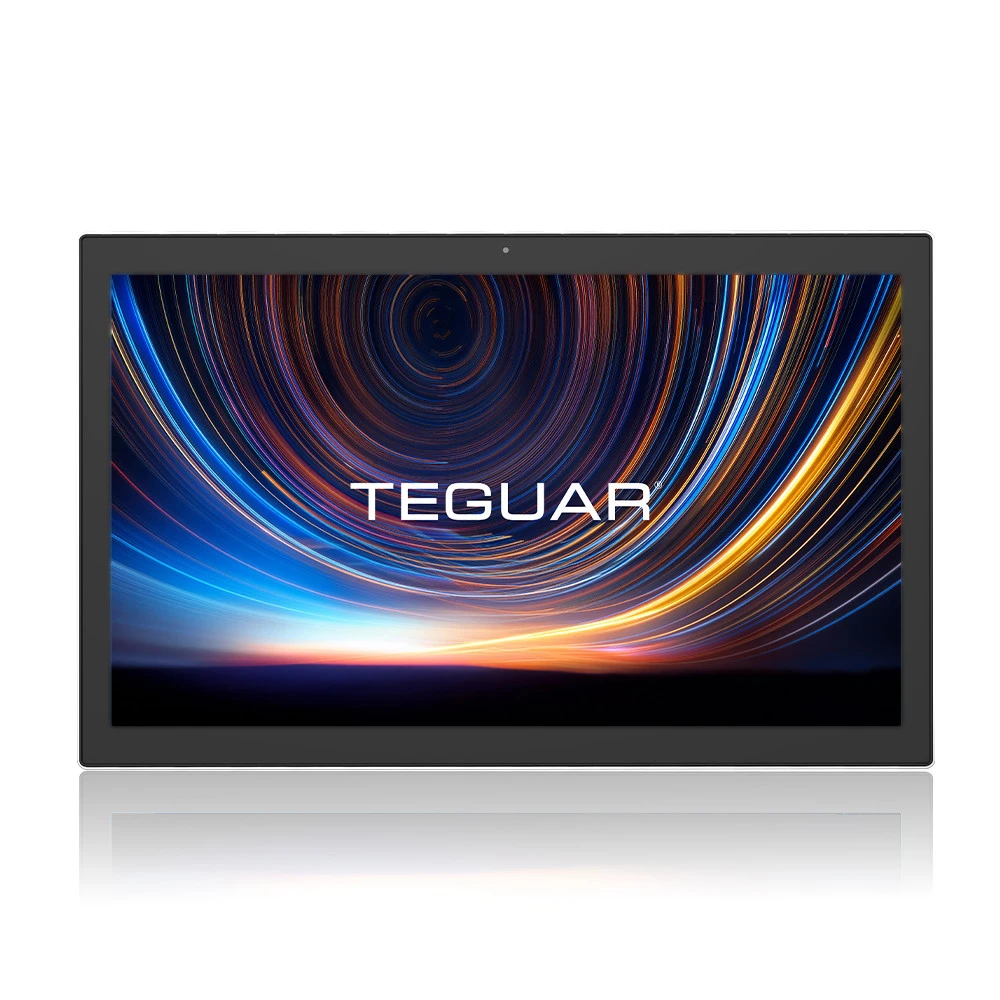

The Hardware Foundation: TM-7240-22 Medical Grade AIO PC

The TM-7240-22 Medical Grade AIO PC is built to withstand physical abuse in medical environments:

• Vibration Resistance: Internal components secured with lock-tight screws and rugged mount rails.
• Solid State Components: M.2 NVMe SSDs instead of spinning hard drives.
• VESA 75/100 Mount Compliance: Standardized mounting patterns.
• Sealed, Fanless Construction: Prevents dust build-up when subjected to shaking.

Step-by-Step Mount Design

Step 1: Selecting Shock Absorbers

Use elastomeric isolators or wire rope isolators between the VESA plate and the cart frame to absorb low-frequency vibrations.

Step 2: Cable Strain Relief

Secure power and communication cables with zip ties or clamping brackets near the entry ports of the TM-7240-22 Medical Grade AIO PC to prevent port damage.

+--------------------+
|  Teguar PC (VESA)  |
+---------+----------+
          |
    [Isolator Pads]
          |
+---------+----------+
|  Cart Mounting Arm |
+--------------------+

Conclusion

Using shock-absorbing VESA mounts with the ruggedized chassis of the TM-7240-22 Medical Grade AIO PC ensures maximum uptime for mobile clinical computers under heavy daily use.
