How to Build: Deploying Quantized LLMs on Medical Box PCs for Doctor Assistants using Prism TMT-7165-13 Medical Healthcare Tablet

Mobile healthcare tablets are revolutionizing patient rounds by bringing clinical records directly to the bedside. Adding an intelligent, local AI doctor's assistant to these devices can significantly reduce administrative overhead by drafting patient summaries and outlining medication schedules in real-time.

This guide outlines how to deploy quantized LLMs directly on the mobile Prism TMT-7165-13 Medical Healthcare Tablet or local medical box PCs.

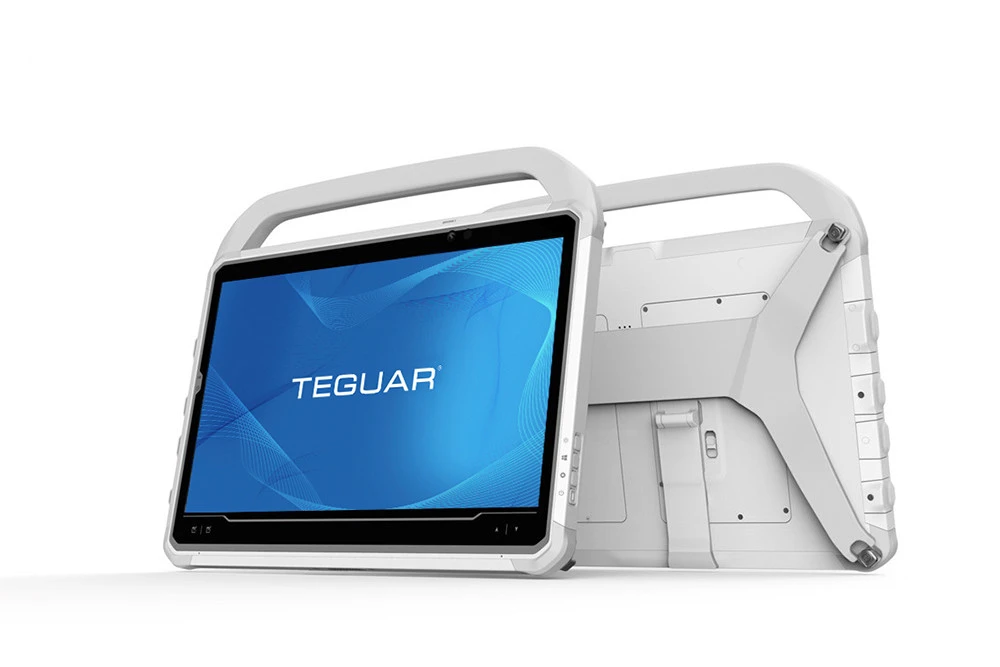

Hardware Platform: Prism TMT-7165-13 Medical Tablet

Running local LLM inference on a mobile tablet requires high-efficiency processors, excellent thermals, and long battery life.

• Mobility & Ergonomics: The Prism TMT-7165-13 features a lightweight design with a 13" touchscreen, allowing doctors to carry AI-assisted workflows anywhere in the ward.
• Robust Hardware: Powered by high-efficiency Intel processors, it supports local execution of modern 3B to 8B parameter models.
• Sealed & Cleanable: Its IP65-rated front panel and antibacterial housing withstand chemical cleanings, keeping the hardware sterile.

---

Deployment Workflow

+---------------------------------------------------------------------------------+
|                    Prism TMT-7165-13 Medical Healthcare Tablet                  |
|                                                                                 |
|  +--------------------+      +--------------------+     +--------------------+  |
|  | Doctor Voice/Text  | ---> | local llama.cpp    | --> | Quantized Model    |  |
|  | Input via Bedside  |      | runtime (int4/int8)|     | (Phi-3-3B / Llama) |  |
|  +--------------------+      +--------------------+     +---------+----------+  |
|                                                                   |             |
|                                                                   v             |
|                                                         +---------+----------+  |
|                                                         | Structured Draft   |  |
|                                                         | (XML / Markdown)   |  |
|                                                         +--------------------+  |
+---------------------------------------------------------------------------------+

---

Implementation Details

Step 1: Model Selection & Quantization

For mobile edge devices, we prioritize models with a small footprint but high reasoning skills, such as Microsoft's Phi-3-mini (3.8B parameters) quantized to 4-bit (Q4_K_M GGUF format).

Download the quantized model weight locally:

mkdir models
curl -L -o models/phi-3-mini-4k-instruct-q4.gguf https://huggingface.co/microsoft/Phi-3-mini-4k-instruct-gguf/resolve/main/Phi-3-mini-4k-instruct-q4.gguf

Step 2: C-based Inference Engine with Python bindings

We run the model using the highly optimized C++ library llama.cpp via Python wrappers.

from llama_cpp import Llama
import time

# Load the model with optimizations for Intel mobile architectures
llm = Llama(
    model_path="./models/phi-3-mini-4k-instruct-q4.gguf",
    n_ctx=1024,
    n_threads=2, # Optimized for battery preservation and dual-core performance
    n_batch=512
)

def run_doctor_assistant_query(transcript):
    prompt = f"""<|user|>
You are a local bedside clinical assistant. Structure the following raw physician voice transcription into standard clinical SOAP note format:
Transcription: {transcript}
<|end|>
<|assistant|>"""

    start_time = time.time()
    response = llm(
        prompt,
        max_tokens=512,
        temperature=0.1,
        stop=["<|end|>"]
    )
    duration = time.time() - start_time
    text = response["choices"][0]["text"]

    print(f"Generated SOAP notes in {duration:.2f} seconds.")
    return text

Step 3: RunningBedside Scribe Logic

raw_transcription = "Patient John Doe is reporting mild abdominal pain after meals. Vitals are normal. Suggesting low-fat diet."
soap_note = run_doctor_assistant_query(raw_transcription)
print(soap_note)

---

Battery & Thermal Optimization on Tablets

• Thread Throttling: Limit model execution to 2 threads on mobile processors to prevent processor spikes that drain battery.
• Low Context Window: Restrict context to 1024 tokens to optimize prefill latency, ensuring responsiveness when the doctor is standing at the bedside.

Conclusion

Running optimized, quantized models on the mobile Prism TMT-7165-13 Medical Tablet gives physicians the speed and privacy of local AI without compromising device battery life or clinical mobility.
