How to Build: Balancing Latency, Bandwidth and Compute in Clinical AI Networks using TMB-7115 Medical AI Computer

---

title: "How to Build: Balancing Latency, Bandwidth and Compute in Clinical AI Networks using TMB-7115 Medical AI Computer" excerpt: "An engineering guide showing how to implement balancing latency, bandwidth and compute in clinical ai networks on Teguar's purpose-built TMB-7115 Medical AI Computer with ai solutions architecture." date: "2026-07-07" skill: "AI Solutions Architecture" hardware_name: "TMB-7115 Medical AI Computer" hardware_img: "medical-ai-computer-tmb-7115.jpg" hardware_type: "medical-box-pc"

---

Executive Summary

An engineering guide showing how to implement balancing latency, bandwidth and compute in clinical ai networks on Teguar's purpose-built TMB-7115 Medical AI Computer with ai solutions architecture.

Edge AI applications in clinical environments require a careful balance between processing speed (latency), network usage (bandwidth), and processing cost (compute). This guide walks through the engineering decisions required to design a network-efficient and responsive AI pipeline using the TMB-7115 Medical AI Computer as the primary high-compute edge node.

The Latency-Bandwidth-Compute Trade-Off

When deploying clinical AI, engineers face a trilemma:

1. Low Latency: High-priority tasks (e.g. surgical video analysis, cardiac anomaly warnings) require sub-100ms response times.
2. Bandwidth Constraints: Streaming multiple high-definition video feeds or high-frequency sensor telemetry to the cloud saturates local network infrastructure.
3. Compute Efficiency: High-performance models require powerful GPUs that draw significant power and produce heat, which is problematic in sterile, fanless hospital rooms.

| Objective | Edge Processing | Cloud Processing | Hybrid Approach (TMB-7115) | |---|---|---|---| | Latency | Extremely Low (<30ms) | Variable (150-1000ms) | Balanced (<50ms) | | Bandwidth | Negligible (local LAN) | Extremely High (WAN link) | Low (Filtered data sent) | | Compute Cost | Fixed hardware cap | Pay-per-use (High scale) | Optimized (Split workloads) |

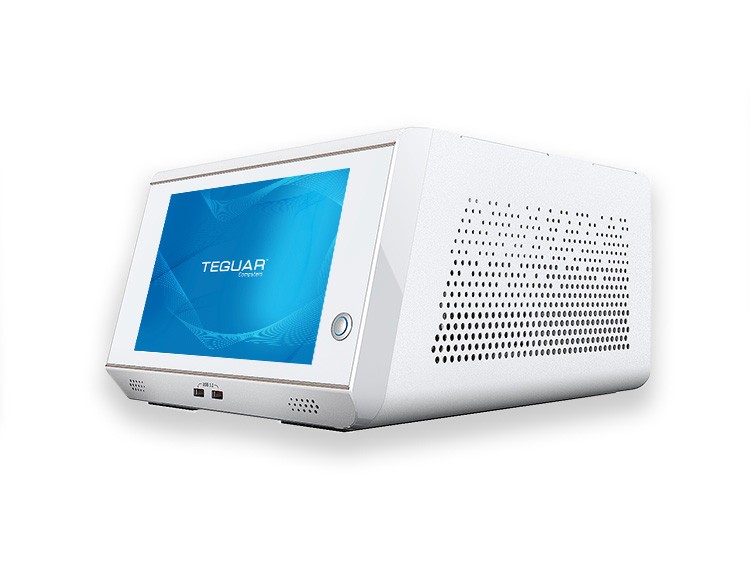

The Solution: TMB-7115 Medical AI Computer

The TMB-7115 Medical AI Computer is designed to solve this trilemma. With its powerful processor configurations, fanless thermal dissipation, and medical safety certifications, it handles intensive local compute tasks (like image classification or real-time sensor processing) right in the patient zone. This eliminates WAN latency and prevents hospital network congestion.

Designing the Pipeline Architecture

To balance these constraints, we implement a Dynamic Resolution and Inference Pipeline (DRIP):

1. Edge Filter: Ingest raw video or waveform data locally.
2. Local Anomaly Detection: Run lightweight models on the TMB-7115 Medical AI Computer to monitor for baseline shifts or movement.
3. High-Value Cloud Uplink: Only stream full-resolution data to the central cluster when the local model flags an anomaly or complex clinical review is required.

Pipeline Optimization Script

The following Python script runs on the TMB-7115 Medical AI Computer to dynamically adjust frame processing rates and choose between local or cloud inference based on network ping and signal variance:

import time
import numpy as np
import requests

LOCAL_INFERENCE_URL = "http://localhost:8501/v1/models/ecg:predict"
CLOUD_INFERENCE_URL = "https://cloud.clinical-ai.org/v1/predict"
MAX_LATENCY_BUDGET = 0.05  # 50ms

def evaluate_network_latency():
    start = time.time()
    try:
        r = requests.head("https://cloud.clinical-ai.org/health", timeout=0.1)
        return time.time() - start
    except requests.exceptions.RequestException:
        return 999.0  # Network down

def process_ecg_signal(signal_batch):
    # Calculate variance to see if the signal is stable
    variance = np.var(signal_batch)
    network_latency = evaluate_network_latency()

    # Decision Matrix
    if variance < 0.05:
        # Normal signal: Skip inference to save compute
        return "NORMAL_NO_INFERENCE"

    elif network_latency > MAX_LATENCY_BUDGET or variance > 2.0:
        # Low latency needed OR network is slow: Process locally on TMB-7115
        response = requests.post(LOCAL_INFERENCE_URL, json={"data": signal_batch.tolist()})
        return response.json().get("prediction")

    else:
        # Complex signal but network is fast: Offload to Cloud AI
        response = requests.post(CLOUD_INFERENCE_URL, json={"data": signal_batch.tolist()})
        return response.json().get("prediction")

if __name__ == "__main__":
    mock_signal = np.random.normal(0, 1, 100)
    result = process_ecg_signal(mock_signal)
    print(f"Pipeline routed prediction result: {result}")

Conclusion

Balancing latency, bandwidth, and compute is crucial for safety-critical medical installations. Leveraging the high-performance, fanless TMB-7115 Medical AI Computer allows medical developers to construct failsafe edge-first pipelines, keeping patient data secure, latency minimal, and networks unclogged.
